Product details
Features:

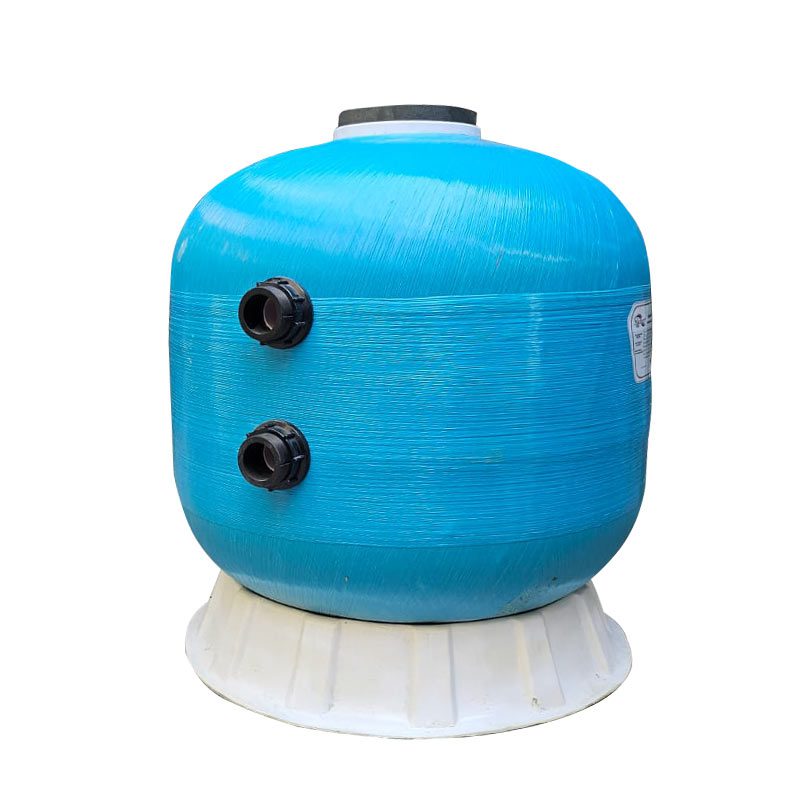

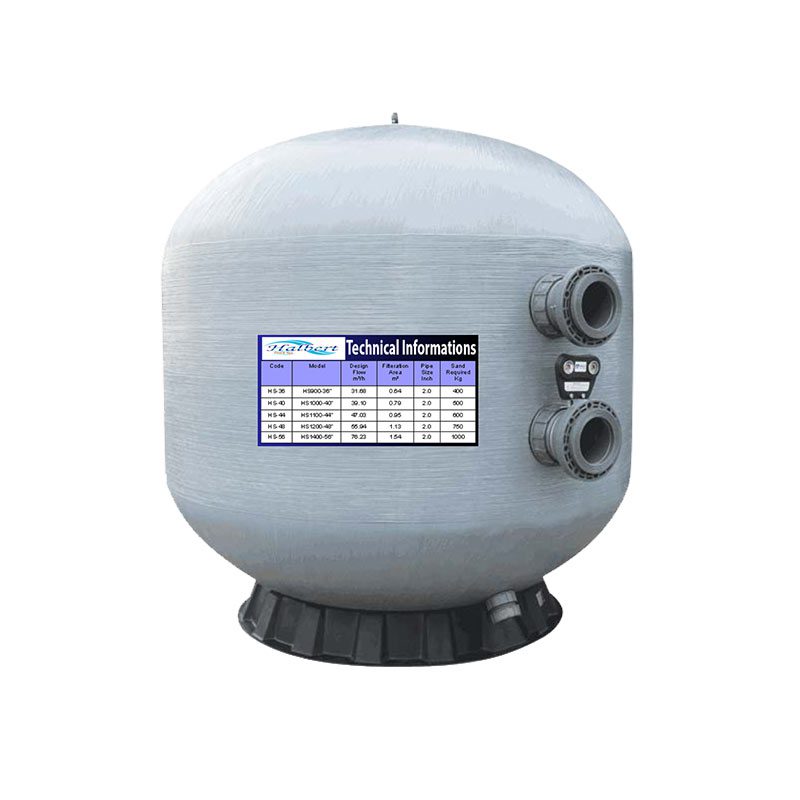

- The fiberglass winding design enables the filter to be durable, deforming-proof and corrosion resistant.
- A unique and advanced design ensures fast draining and stabilizes water flow

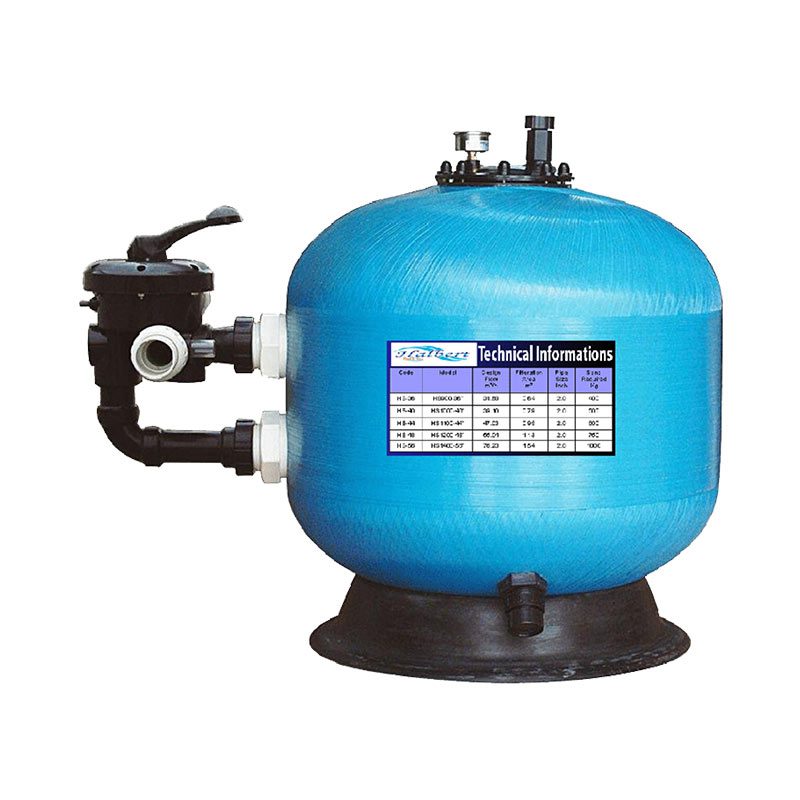

- The 6-position multiport valve with a user friendly handle easily provides you a maximum flow at low pressure drop.

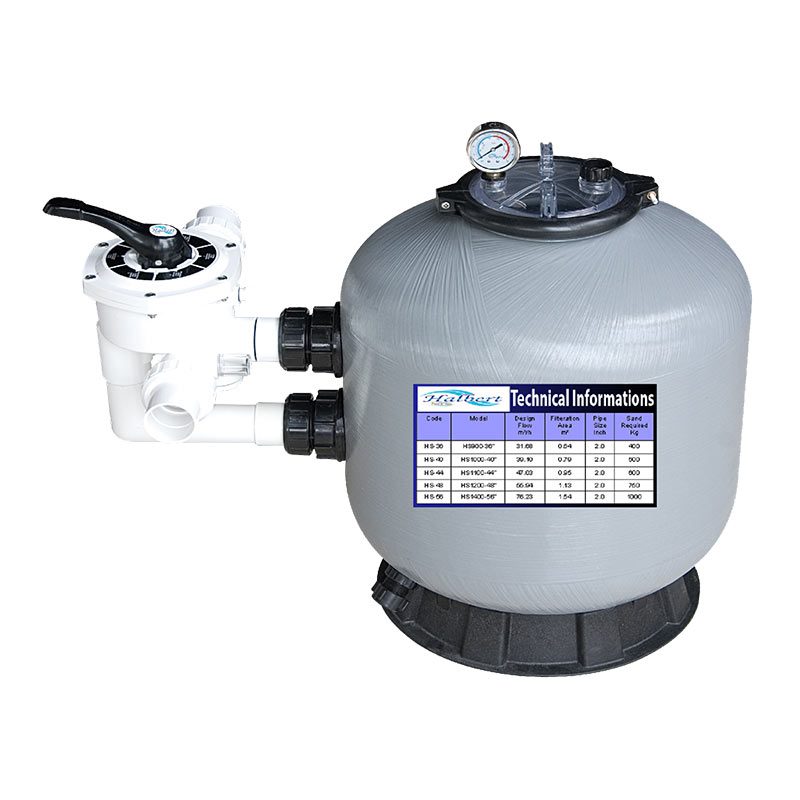

- The Sand filter comes with a precise pressure gauge.
- It is easy to install and to maintain.
- The Outlet turbidity is less than 2FTU.
- Working pressure is 2.5 Kg cm²/36 psi.
- UV resistance surface allows the filter to work under direct sunlight.
- Maximum operating temperature is 50ºC.
- Smooth & High brightness appearance easy to clean.
Technical Information
| Code | Model | Design Flow m³/h | Filtration Area m² | Pipe Size Inch | Sand Req. Kg |
|---|---|---|---|---|---|
| HS36 | HS900-36” | 31.68 | 0.64 | 2.0 | 400 |
| HS-40 | HS1000-40” | 39.10 | 0.79 | 2.0 | 500 |
| HS-44 | HS1100-44” | 47.03 | 0.95 | 2.0 | 600 |
| HS-48 | HS1200-48” | 55.94 | 1.13 | 2.0 | 950 |
| HS-56 | HS1400-56” | 76.23 | 1.54 | 2.0 | 1350 |
| HS-64 | HS1600-64” | 100 | 2.06 | 4.0 | 2300 |
| HS-72 | HS1800-72” | 120 | 2.52 | 6.0 | 2900 |
| HS-80 | HS2000-80” | 145 | 2.97 | 6.0 | 4000 |
Product Dimensions
| Code | HS-36 | HS-40 | HS-44 | HS-48 | HS-56 | HS-64 | HS-72 | HS-80 |
|---|---|---|---|---|---|---|---|---|
| A | 900 | 1000 | 1100 | 1200 | 1400 | 1600 | 1800 | 2000 |
| B | 530 | 540 | 540 | 660 | 770 | 1450 | 1610 | 1800 |
| C | 1020 | 1020 | 1200 | 1210 | 1350 | 810 | 850 | 900 |
| D | 142 | 142 | 142 | 142 | 142 | 1740 | 2040 | 2210 |
