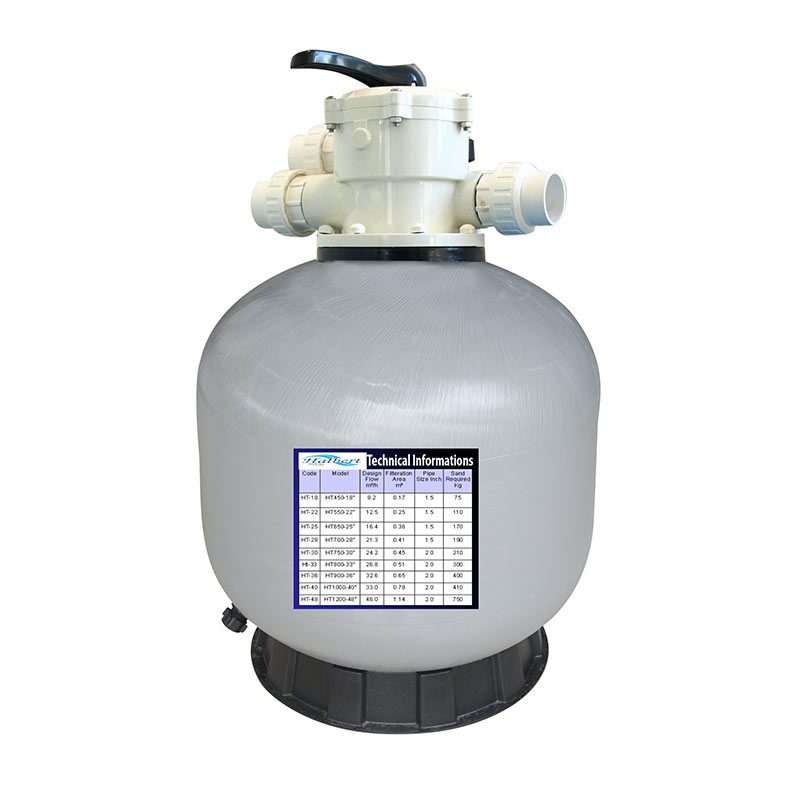

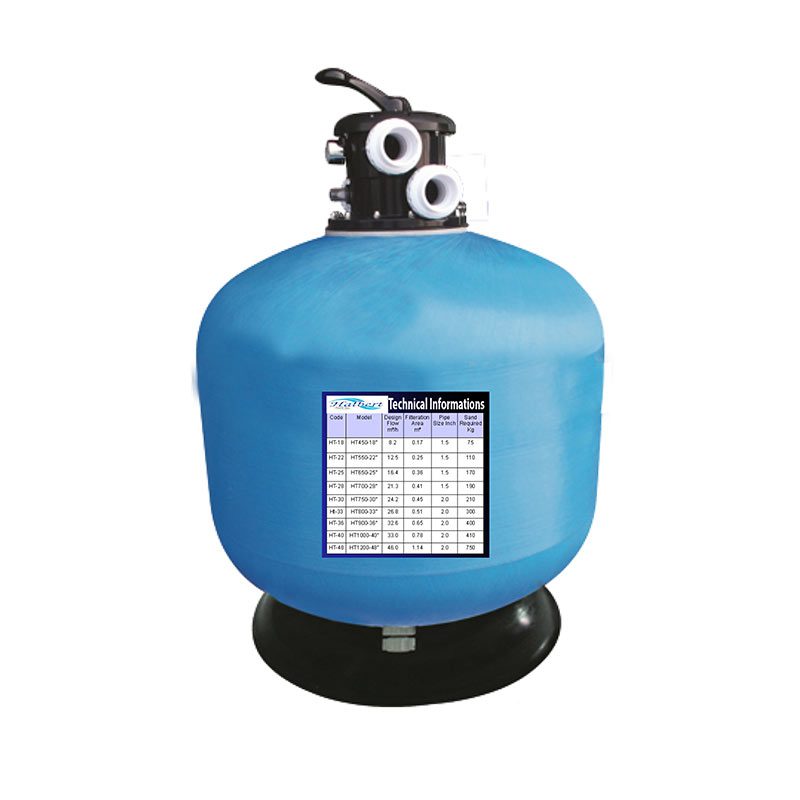

Product details
Features:
- The fiberglass winding design enables the filter to be durable, deforming-proof and corrosion resistant
- A uniques and advanced design ensures fast draining and stabilizes water flow.
- The 6-position multiport valve with a user friendly handle easily provides you a maximum flow at low pressure drop.
- The Sand filter comes with a precise pressure gauge.
- It is easy to install and to maintain.
- The Outlet turbidity is less than 2FTU.
- Working pressure is 2.5 Kg cm²/36 psi.
- UV resistance surface allows the filter to work under direct sunlight.
- Maximum operating temperature is 50ºC.
Technical Information
| Code | Model | Design Flow m³/h | Filtration Area m² | Pipe Size Inch | Sand Req. Kg |
|---|---|---|---|---|---|
| HT-16 | HT400-16” | 6.5 | 0.13 | 1.5 | 45 |
| HT-18 | HT450-18” | 8.2 | 0.17 | 1.5 | 75 |
| HT-22 | HT550-22” | 12.5 | 0.25 | 1.5 | 110 |
| HT-25 | HT650-25” | 16.4 | 0.36 | 1.5 | 170 |
| HT-28 | HT700-28” | 21.3 | 0.41 | 1.5 | 190 |
| HT-30 | HT750-30” | 24.2 | 0.45 | 2.0 | 250 |
| HT-33 | HT800-33” | 26.8 | 0.51 | 2.0 | 300 |
| HT-36 | HT900-36” | 32.6 | 0.65 | 2.0 | 400 |
| HT-40 | HT1000-18” | 33.0 | 0.78 | 2.0 | 410 |
| HT-48 | HT1200-48” | 49.0 | 1.14 | 2.0 | 900 |

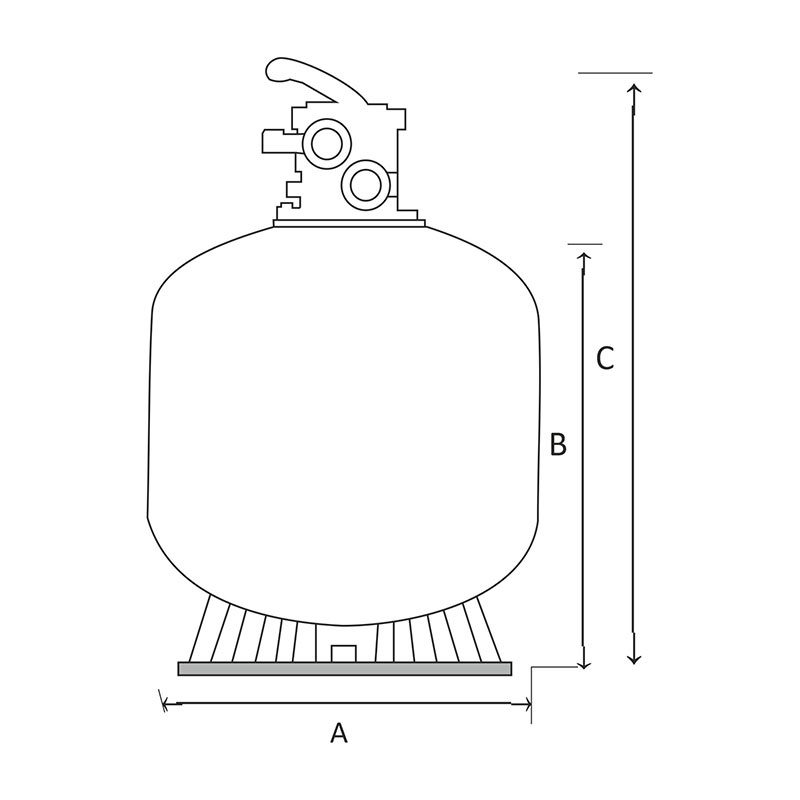

| Code | HT-16 | HT-18 | HT-22 | HT-25 | HT-28 | HT-30 | HT-33 | HT-36 | HT-40 | HT-48 |
|---|---|---|---|---|---|---|---|---|---|---|
| A | 390 | 450 | 550 | 650 | 700 | 750 | 800 | 900 | 1000 | 1200 |
| B | 536 | 580 | 610 | 710 | 740 | 730 | 870 | 970 | 1160 | 1164 |
| C | 730 | 840 | 870 | 970 | 1000 | 1020 | 1160 | 1260 | 1380 | 1450 |
